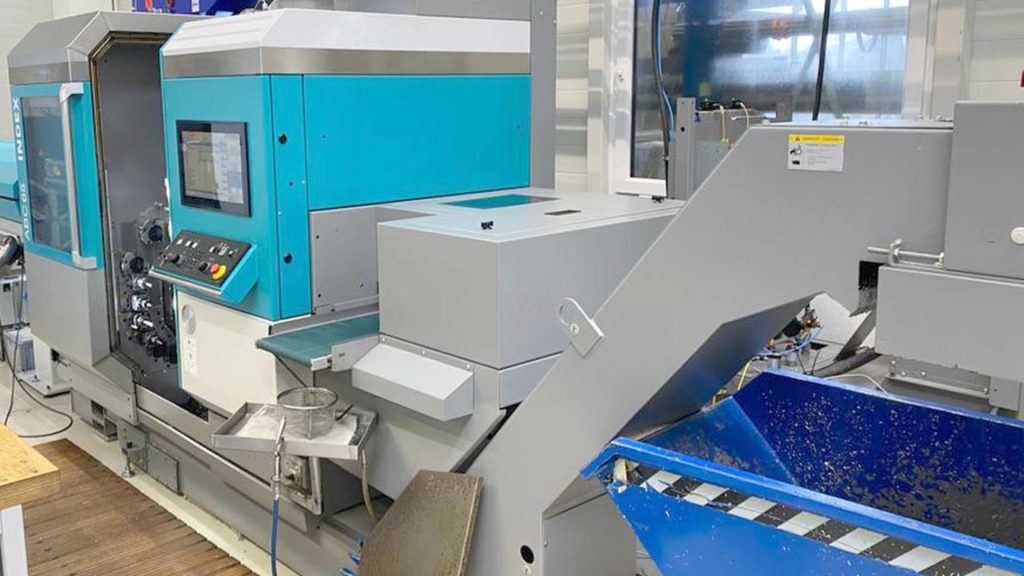

Brand：INDEX ? Type：ABC 65 ? Category：cylindrical grinder
 |
|
 |
 |
 |
 |
 |
|
 |
 |
 |
|
Technical Parameter
| Technical data | |
| Number of turning spindles | 2 |
| Number of revolvers | 2 |
| Spindle head | ISO 702/1 |
| Spindle hole | 65 mm |
| Spindle diameter | 140 mm |
| Turret carriage | |
| Carriage 1 | |
| Longitudinal travel (Z-axis) | 300 mm |
| Transversal strocke (X axis) | 140 mm |
| Transversal travel (y-axis) | 100 mm |
| Carriage 2 | |
| Longitudinal travel (Z-axis) | 300 mm |
| Transversal strocke (X axis) | 140 mm |
| Transversal travel (y-axis) | 100 mm |

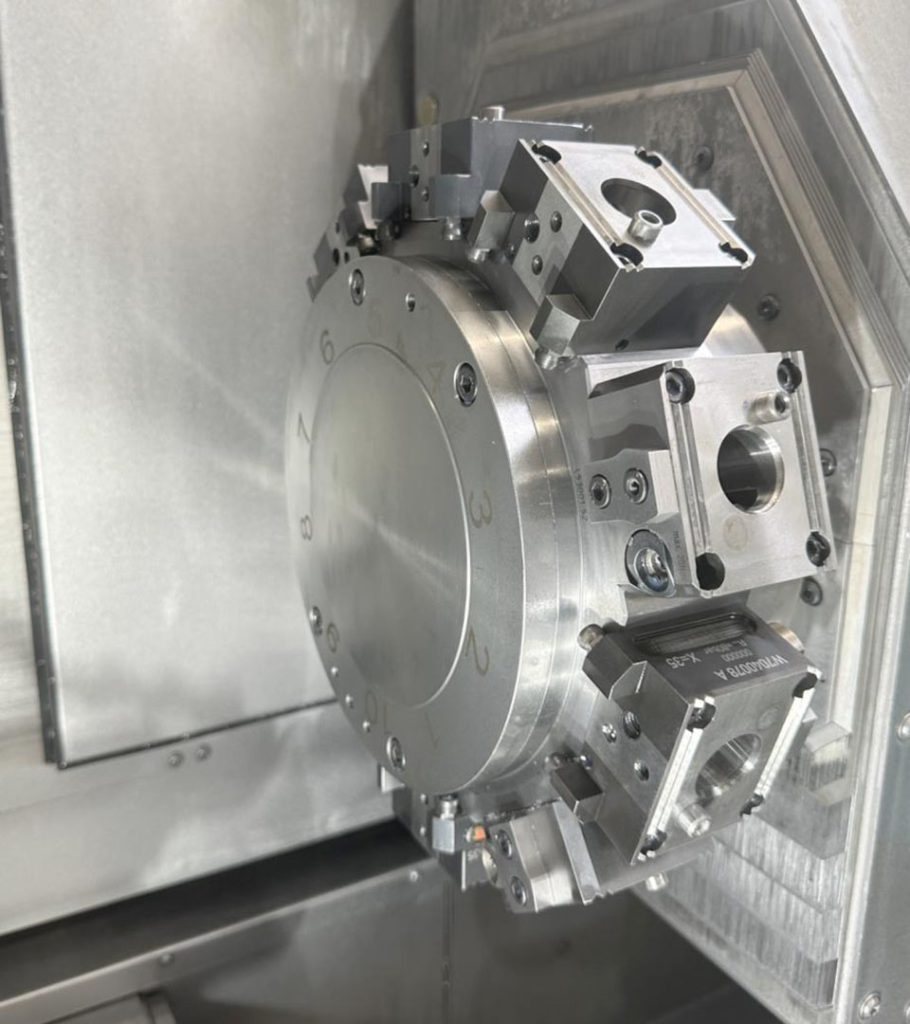

| Turret slide number | 2 |
| Number of positions turret 1 | 10 |
| Number of positions turret 2 | 9 |
| Number of positions turret back side | 8 |
| Driven tools turret 1 | 10 |
| Driven tools turret 2 | 9 |
| Driven tools back side | 5 |
| Spindle speeds | 12000 rpm |
| Tool shank cross section | 45 mm |
| Power of driven tools | 7.5 / 9 kW |
| Indexing time | 0.4 sec |
| Main spindle | |
| C axis (spindle,resolution) | 0.001 ° |
| Spindle speeds | |
| stepless | |
| from | 0 rpm |
| up to | 6000 rpm |
| Torque max. | 80 / 120 Nm |
| Spindle power | 25 / 35 kW |

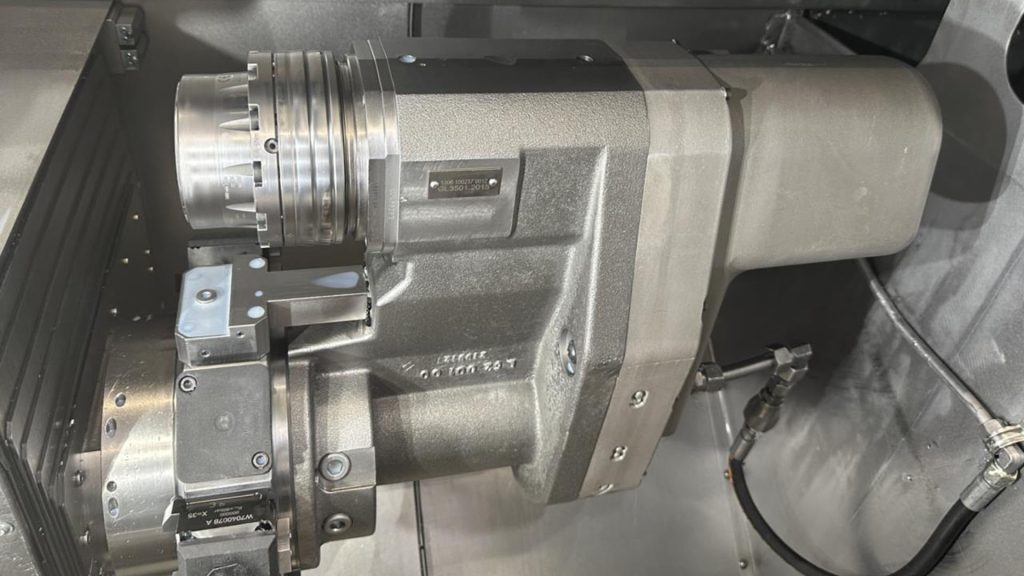

| Back spindle mobile | |
| max. speed | 6000 rpm |
| Internal spindle diameter | 65 mm |
| Spindle diameter | 110 mm |
| C axis (spindle,resolution) | 0.001 ° |
| Power of back spindle | 5 / 9 kW |
| Torque max. | 10.5 / 20 Nm |
| Rapid traverse X | 30 m/min |
| Rapid traverse Z | 50 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 41 kW |
| Machine’s weight about | 6500 kg |
| Overall dimensions machine | |
| Length | 3600 mm |
| Width | 1280 mm |
| Height | 1950 mm |
| Various accessories | |
| Collet device | |
| Lamp | |

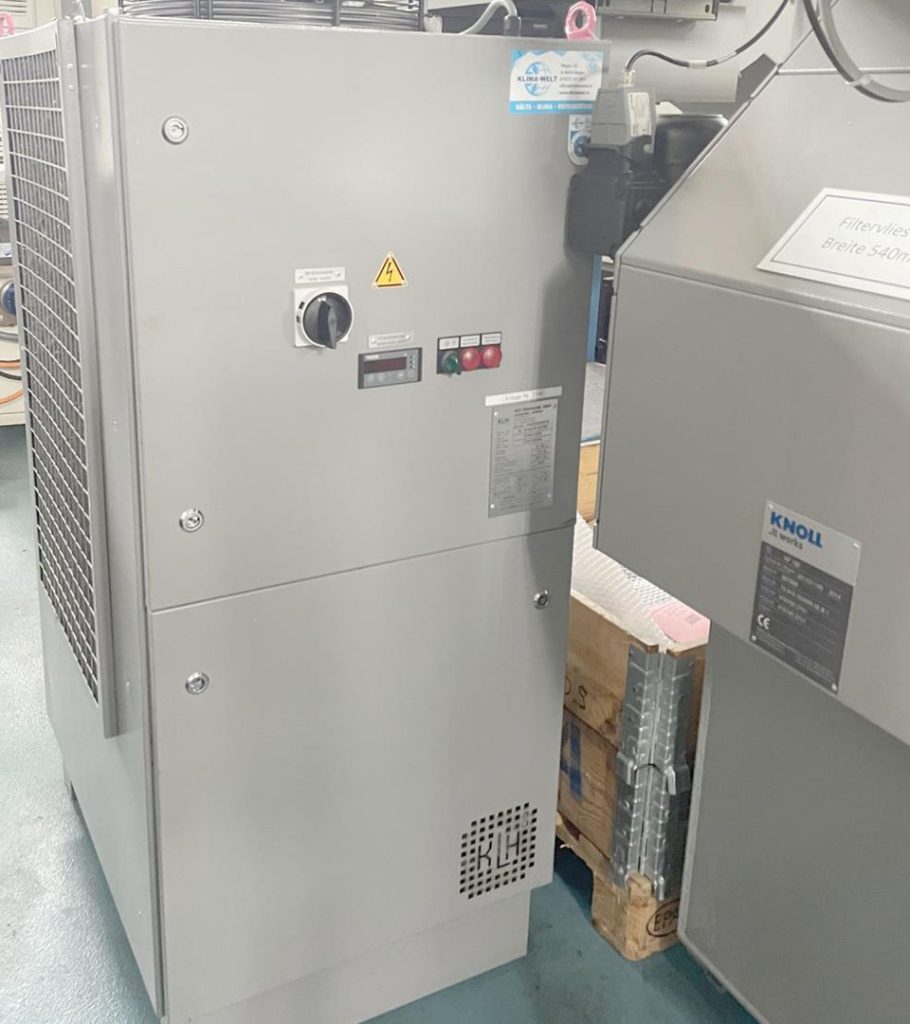

| Water cooler | |
| Coolant system | 300 l |
| High pression colant device | 80 bar |

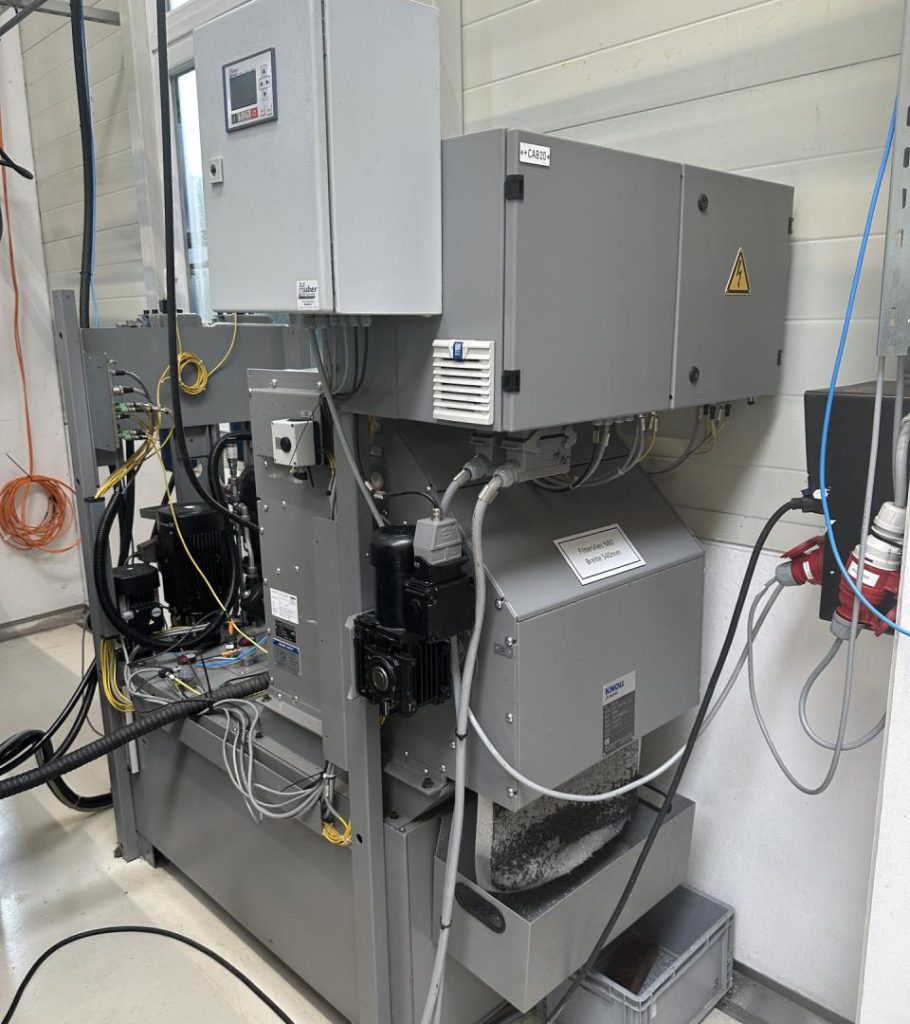

| Paper filter facility | |
| Interface USB | |
| Automatische Teileentnahme | |
| Workpiece conveyor | |
| Chip conveyor | |

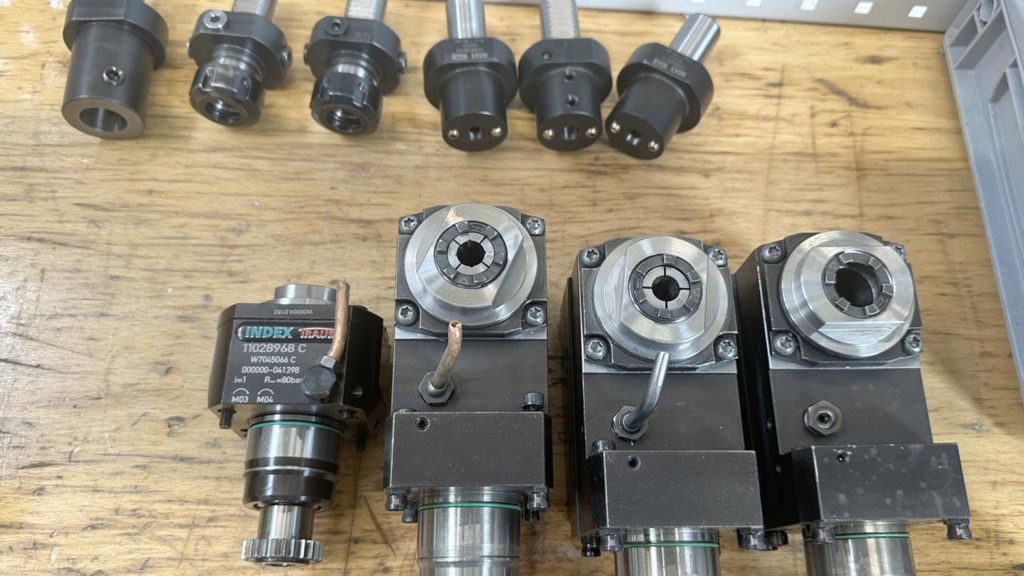

| Set of toolholders | |
| Notes | |
| Z-axis revised | 2023 |
| Technical specifications and pictures without guarantee. |
